Will and I are making some progress on
the half round tables. He's not yet made any of these from start to finish and I haven't made one personally for quite a long time so we're both kind of feeling our way here through what's next and how to go about it. Click the pictures to enlarge them...These posts will be helpful next time ...
Trevor routed a full size template in mdf from our cad drawing and we placed the male section of our glue up forms on the template on the inside of the apron curves. We than struck our angles on the form in pencil and moved the forms to the chop saw where we cut the angles on the bordered aprons.
Next we used parts of the female glue up forms to set up the multirouter to cut the mortises for the loose tenons we use for the joinery. The loose tenons allow us to adjust our angles slightly if necessary for the final fit up.

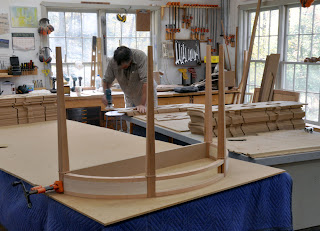

We clamped the back legs and then checked the fits. next step was to stain and paint and move those parts to the finish room before the final glue up. You can see the haunched loose tenons in the photo below.
While those parts were being finished, Will cut and glued up the pieces to make

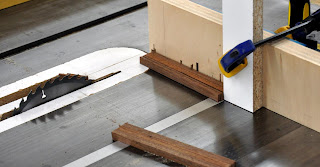

the inlay blocks (the very last photo in that post) in the drawing above. They were ripped on the tablesaw on an 8 degree angle, cut to length and glued up in the simple jig below.
After the center block was sanding to 3/8ths, Will added the 1/1th" plus shop made walnut veneers for the top and bottom and glued them on in the veneer bag.
The finished inlay blanks are below. they'l be sliced into 1/16th inch strips and inset in to a routed groove sometime in the next post.
We got a nice wide plank from
Irion Lumber to make the 20" wide one piece tops and Trevor cut them to shape on the cnc. Hopefully our nex inlay bit will come tomorrow and we can inlay the tops, but in the meantime, will will dovetail the drawers and fit up the drawer fronts .. All for now .. Thanks for sticking with me ...
