a mid century modern walnut table

long story coming up here ... after 35 + years of having employees
to help me figure things out, i am on my own now ...
working by myself mostly, enjoying the rhythms of work,
rediscovering rusty processes, and learning a new
cnc drawing and toolpathing program
on we go, into our 70s ....

i (we) have done this design numerous times,
the first time somewhere around 2014

this one is a 60" round with 1 20" leaf ...
lookin good in its new home

started with some matched irion lumber walnut

glued it up and cut the half rounds and the leaf ends on the cnc

drilled the holes and inserted the pins with our long time

 trusty custom hole and pin and drilling jig



cut the base parts on the cnc

wrestled with many clamps to glue them up

cut the square edge apron parts

joined them together with dominos and pocket screws

routed a half round pocket in a piece of mdf and used the 45 degree
bit to create the angles on the apron pieces below

all together now ...

a little finishing with some dull rubbed poly ..
off to connecticutt ...

a round expanding dining table with a leaf

the 'black' walnut tables roll on ... i think this is our 4th or 5th in the last
couple years.  this one is a variation on our' midcentury modern' style, only with a more open,
stationary pedestal, rather than a two part moving one in the photo below.



we made this design in july of 2014

of the same genre, there is also this design, from march of 2014.

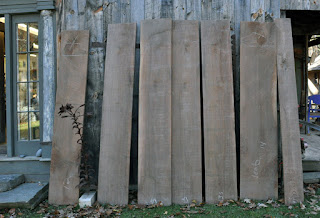

as usual, we started with some nice matched walnut from our friends at irion lumber.

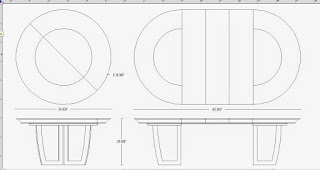

both the earlier and the current cad drawings here

the equalizing runners we used on this table were from osburne manufacturing

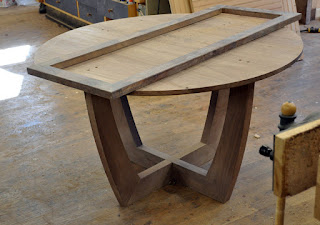

base with the sub top, on which the runners are mounted.

patchwork veneered top frame for the python chest on the sub top there.

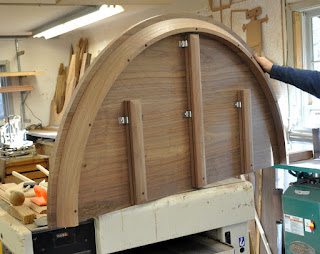

trevor cut the halves, the base pieces and the aprons on the cnc, but
all those processes could be just as easily done by hand .. it might take much longer,
but the operations are standard for most woodshops.

here's trevor checking the runner mounting.  this hardware actually worked very smoothly.

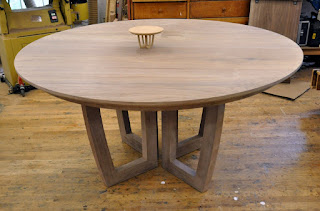

ready for finish above, with one 20" leaf.  add the adam brown mahogany water stain and

a three coats of lenmar poly, and it left for virginia on tuesday.

fun project with a new designer client from the d.c. area ...

this just in ....
